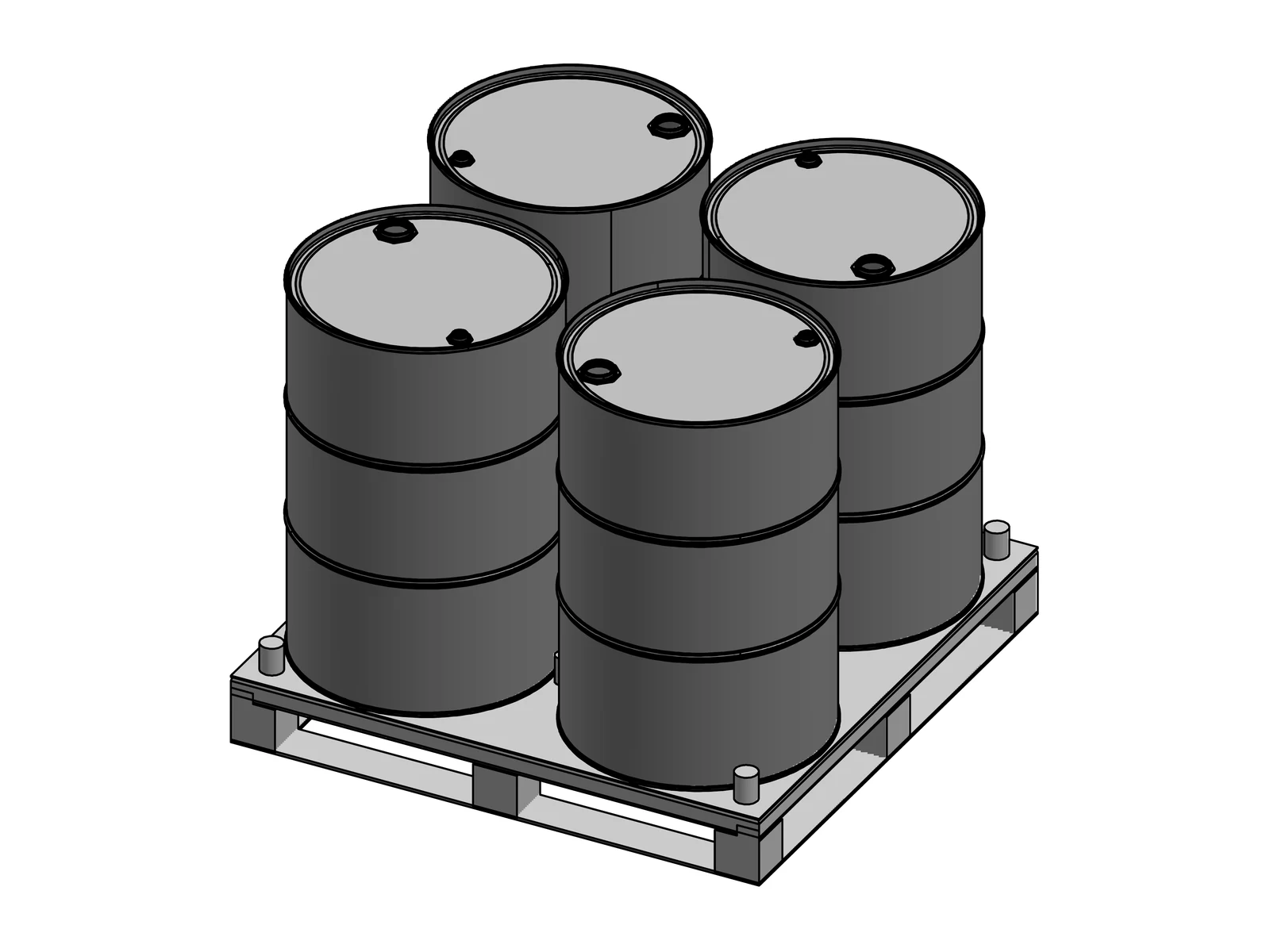

Dual-mode drum pallets
1,000-unit chemical-processing program with four-drum storage, single-drum transport, locating stops, and three quoted material options.
Fabrication Projects
Built Around the Problem, Not a Standard Size
Representative pallets, skids, machine bases, and handling equipment from recent design and quoting work.
Rack-stored drum pallet
48 x 48 pallet for four 55-gallon drums at a 1,760 lb loaded weight, designed around a coatings manufacturer’s rack-storage workflow.

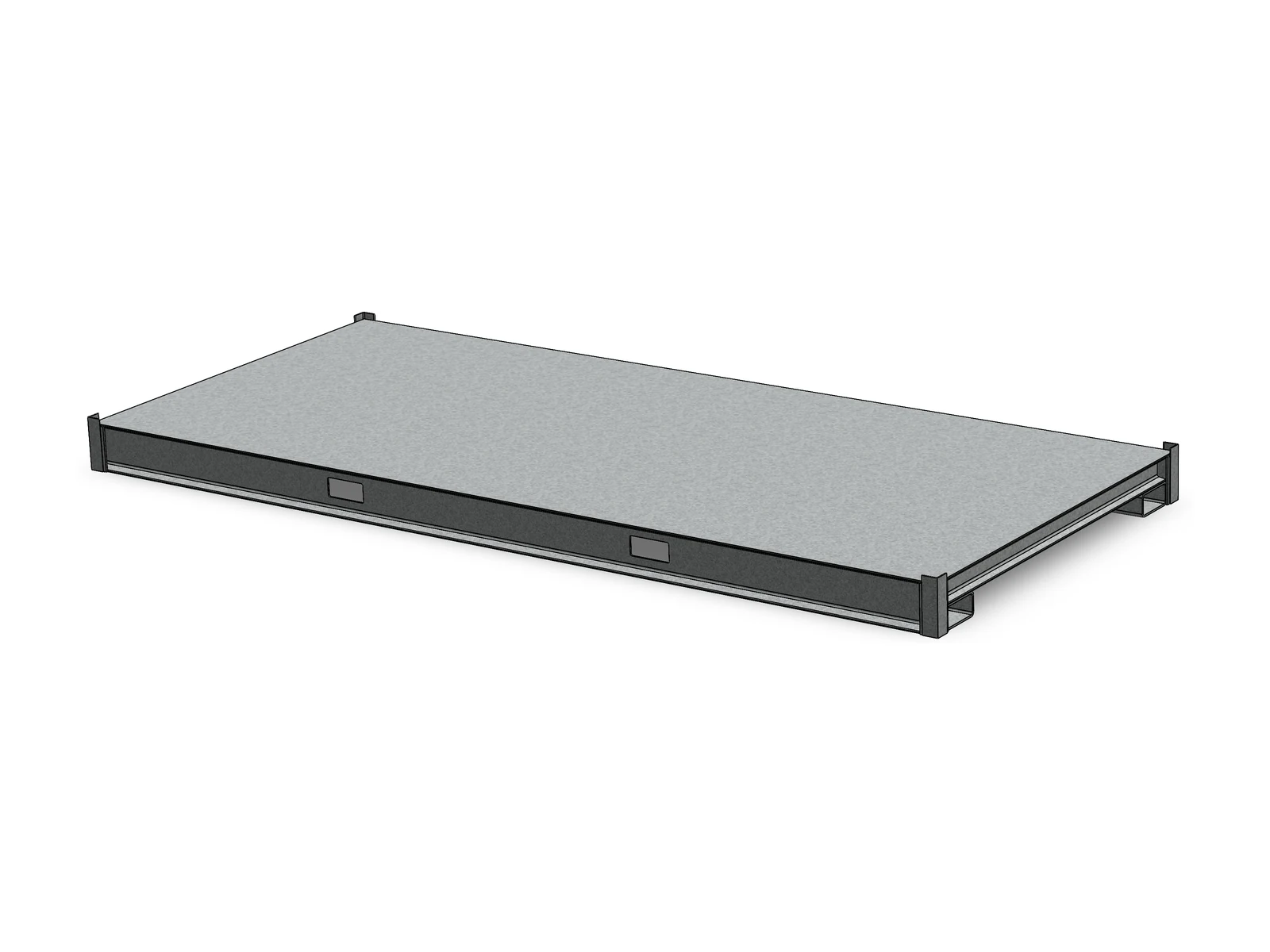

Oversize all-metal pallets
55 x 124 and 49 x 97 platforms for a plastics manufacturer where wood was not permitted in the plant.

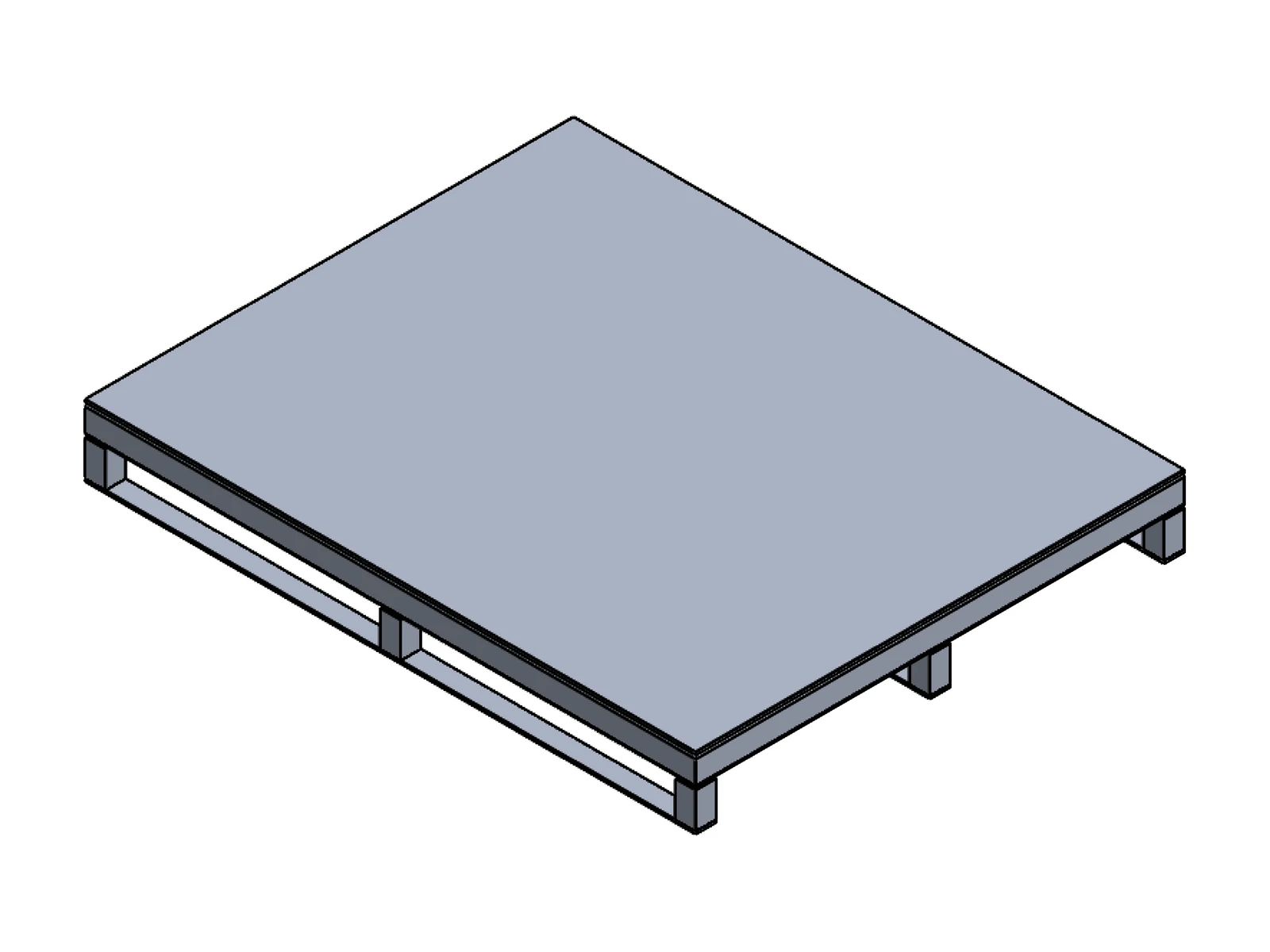

Aluminum machine base
48 x 60 four-way 6061-T6 aluminum pallet rated for a 3,000 lb food-processing machine.

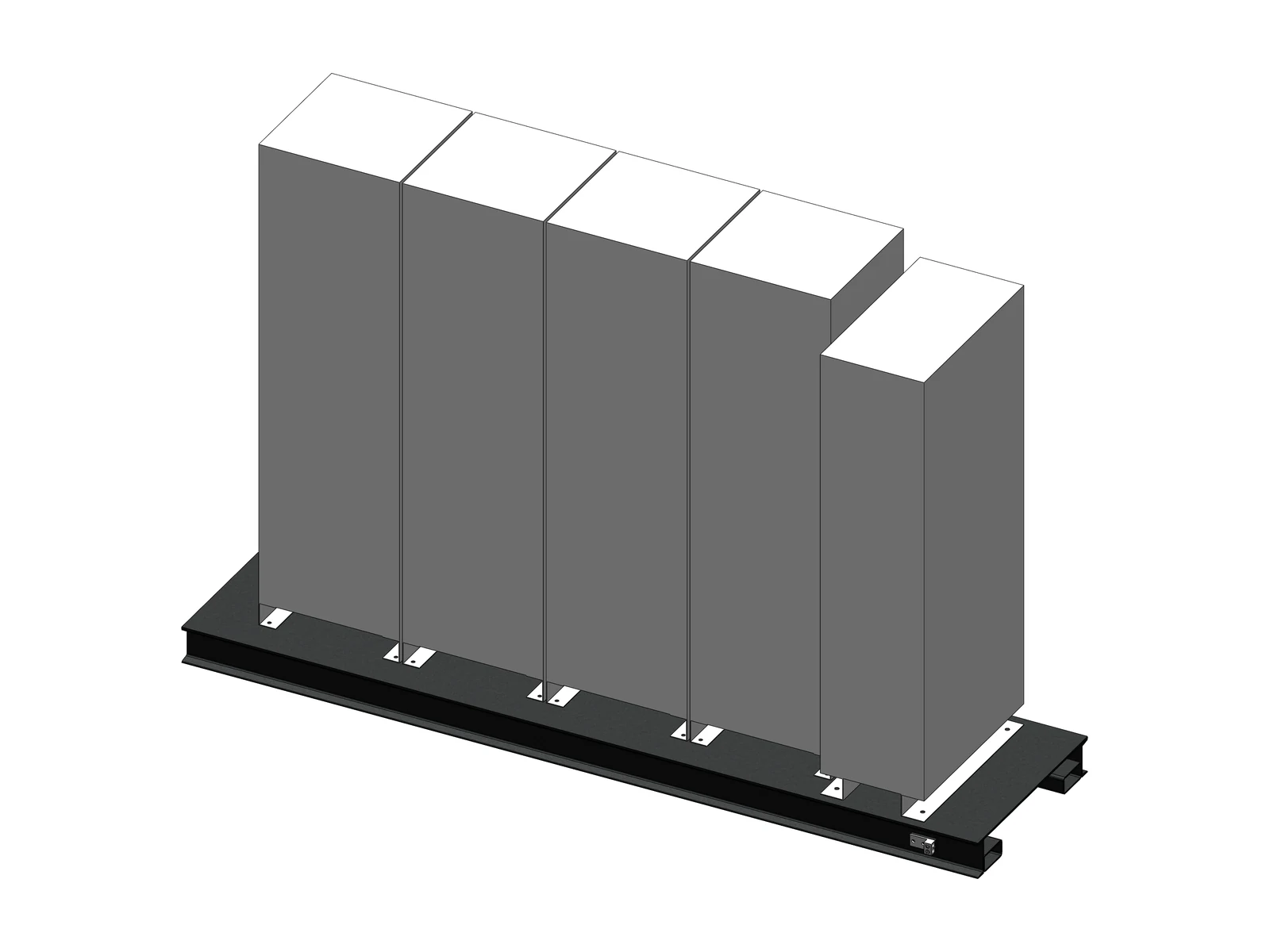

Electrical equipment skid
3 ft x 11 ft 6 in ASTM A36 skid carrying 8,400 lb across five cabinets, finished in flat black powder coat.

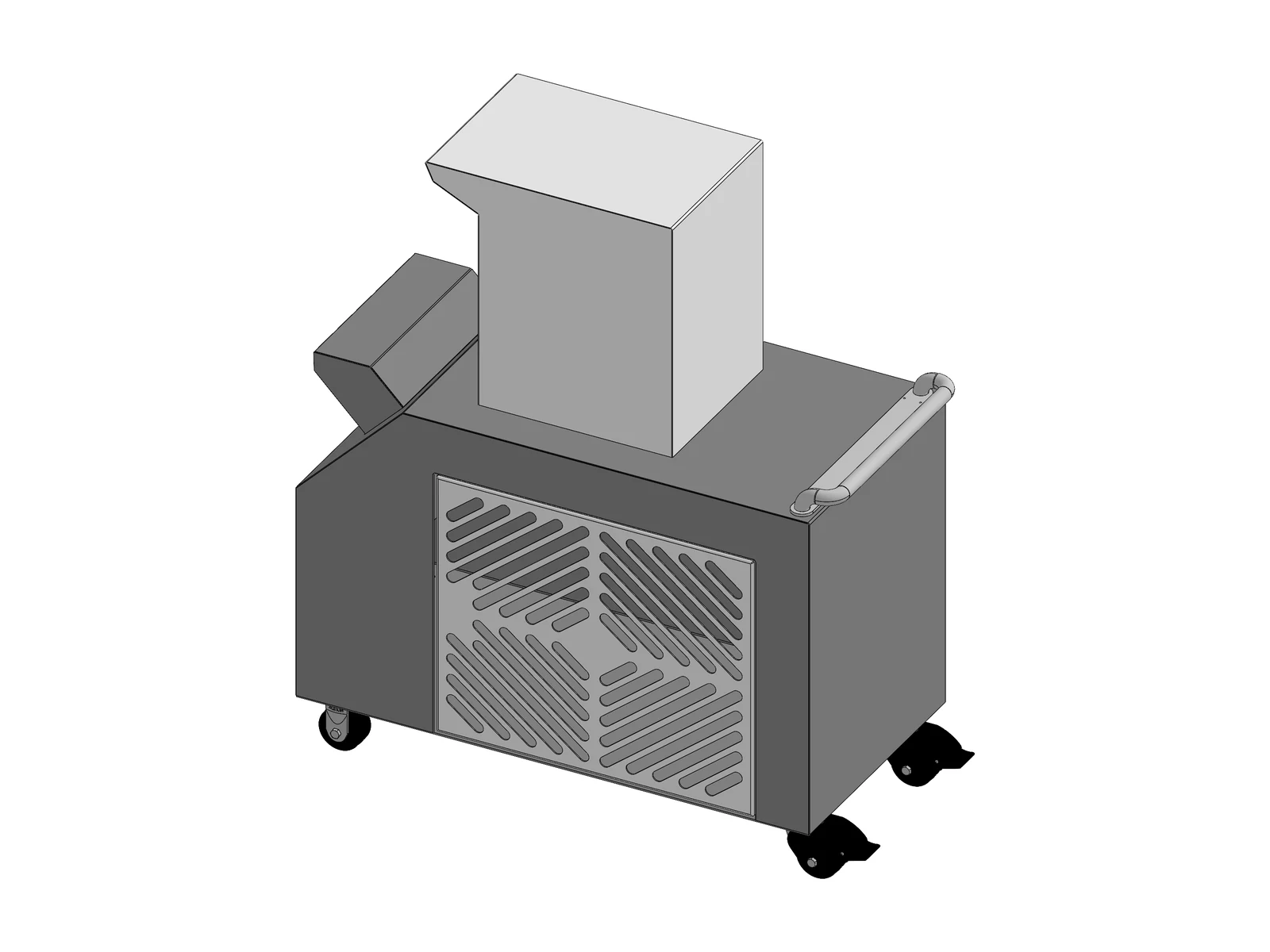

Rolling parcel container
Casters, handle, and vented panel combined into a purpose-built material-handling cart for logistics operations.

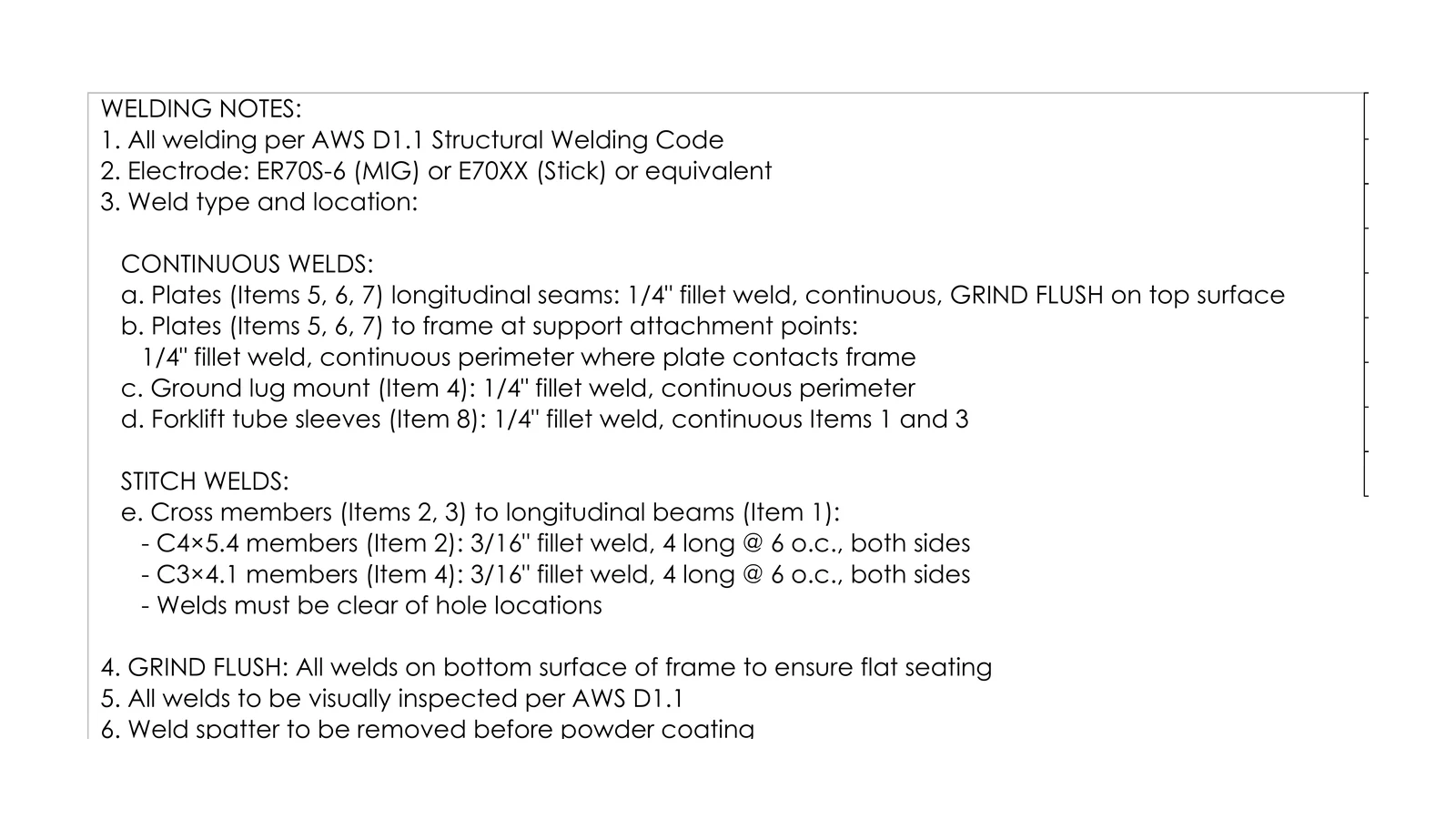

Drawings Before Fabrication
Projects are documented with an approval drawing before anything is built. Depending on the job, that package can include welding notes, an AWS D1.1 callout, a bill of materials, dimensions, and tolerances.
Discuss your project
